XQuery Debugging Perspective
Save time when developing complicated XQuery expressions by
using oXygen XQuery debugger. oXygen can debug and profile expressions run
over the MarkLogic XML database, or using the Saxon EE processors.
oXygen provides a special layout when entering in debugging mode to show the XML
source (optional) and the XQuery documents side by side and to show also the result
and special XQuery debugging views and toolbars. The perspective allows you to use the
common XML and XQuery editor features.
The XQuery debugger support is based on the Saxon EE XQuery
processor which is bundled with oXygen.
Full Control over the XQuery Debugging Process
oXygen provides all the usual debugging capabilities: step into, step over, step
out, run, run to cursor, run to end, pause, stop. The current XML and XQuery nodes

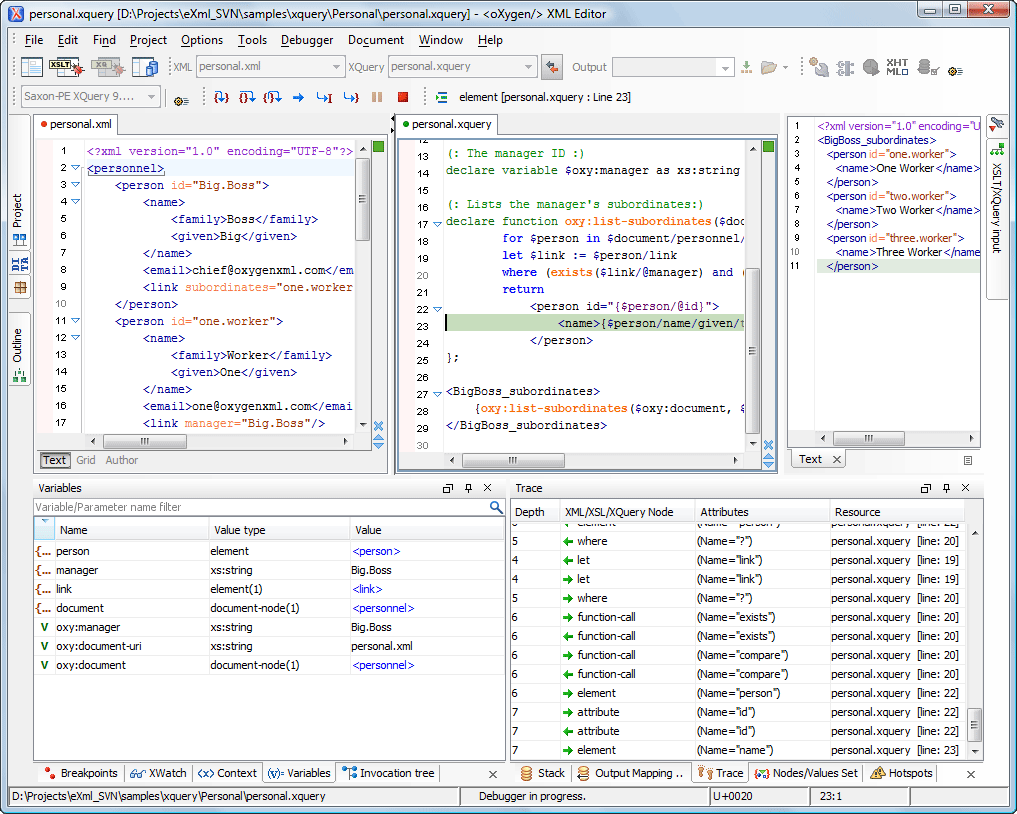

reached by the debugging process are shown (see the right part in the image that
follows) with the following details: an arrow icon to show the action performed on it
(entering/leaving), the name, the resource and the line. By clicking the arrow the
text sections corresponding to the XML and XQuery nodes are highlighted in the
Output Result is Linked to the Generating XQuery Element
Allows you to easily find out what element from the XQuery document generated a
section of the output. For this you just have to click on the Output text view. The
editor will highlight the line in the XQuery document that generated the

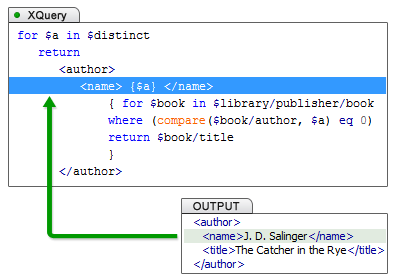

The following image shows the right part of the debugging perspective, with the
XQuery source in the left and the output in the right. The "<name>J. D.
Salinger</name>" fragment of the output was generated by the highlighted name
element of the input XQuery file.

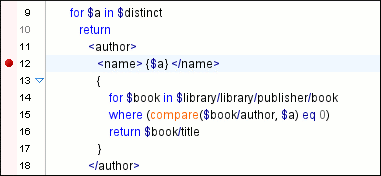

Pause the Debugger Execution with Breakpoints
Breakpoints can be set on the XQuery document used in the transformation. The
breakpoints appear in the left bar of the XQuery editor, as a red dot, and they can be
created easily by using the shortcut key or by clicking the breakpoints area.

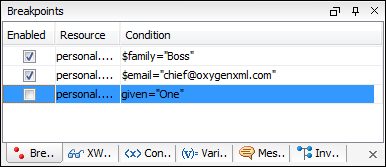

A condition can be attached to a breakpoint set in the Debugger
perspective so that processing stops only if the condition is true.
XQuery Call Stack View

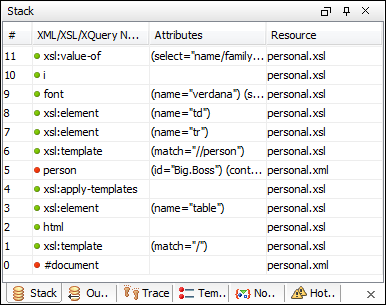

The current stack containing XQuery instructions can be inspected at any time
during the debugging process. The Stack view shows the sequence of XQuery instructions
currently executed by the debugger.

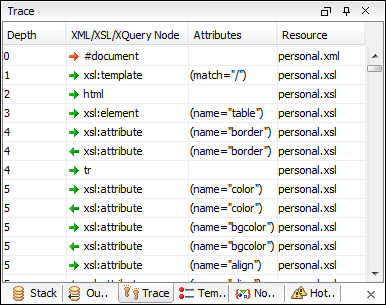

Trace History View
Entering and leaving node events are logged and made available in a view to show
the history of the processor execution. You can click the entries in the list to see
the corresponding instructions highlighted in the editor associated with the XQuery
file where the instruction is defined.

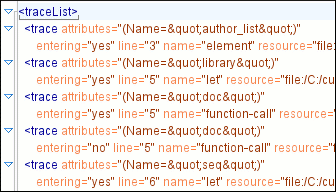

Save the Debug Trace
It is possible to save the element trace obtained from a debug session as XML.
This permits comparing different debug runs.

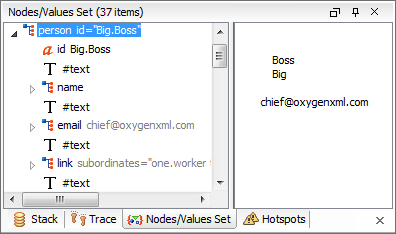

Tree View for Presenting Node Set Values
The current context node value or the values of variables that
are evaluated to tree fragment or list of nodes are presented in tree views, thus
giving access to the whole variable content. This is useful especially in debugging
XQuery transformations that keep intermediary results in variables.
The user can easily locate the nodes from the tree by simply clicking on them: the
editor will select the corresponding XQuery instruction.

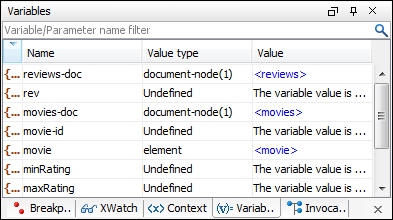

XQuery Variables View
The debugger lists all XQuery variables and parameters that are visible in the
current XQuery context together with their scope and actual value. The view is updated
as the XQuery processor changes the context during the transformation.
Dynamic XQuery Output Generation
The output is dynamically presented as it is generated by the XQuery
transformation process. The user can examine directly the output as XML source.
Scenario-Based XQuery Debugging Session
oXygen has a powerful transformation support based on reusable scenarios. The same
scenarios can be used for debugging. The XQuery Debugger will be initialized with the
information from the XQuery scenario (source document location, transformation
parameters) when the Debug scenario action is executed. This allows to easily manage
and trigger different debugging sessions.
You can profile your XQuery queries to identify the performance
issues using two comprehensive data views of the activated templates: an Invocation
Tree view and a Hotspots view. The profiling information can be saved to XML or HTML
Profiling is available only for the Saxon XQuery processor
which is bundled with oXygen.

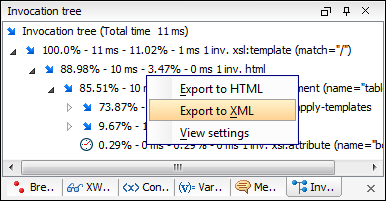

Invocation Tree View
Using the Invocation Tree view, also named a call tree, you can examine how XQuery
instructions are processed in a top down manner. The profiling result shows the
duration time for each of the style-instruction including the time needed for its
children and then, when an instruction is expanded, you can see how the instruction
time is composed from child instruction times.

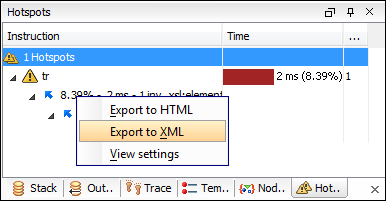

Using the profiler Hotspots view you can immediately detect the time the processor
spent in each instruction. The hotspot displays the inherent time of the instruction,
that is the total time of processing that instruction minus the time for processing
its children instructions. When a hotspot is expanded you can see all the different
paths that instruction was called from (a reverse invocation tree), each path being
labeled with the number of invocations, the instruction time on that path and what
percentage from the instruction total execution that path contributes.
