Schema documentation for component figured-bass

Showing:

Annotations

Attributes

Diagrams

Facets

Instances

Properties

Source

Used by

Element figured-bass/figure

Namespace

No namespace

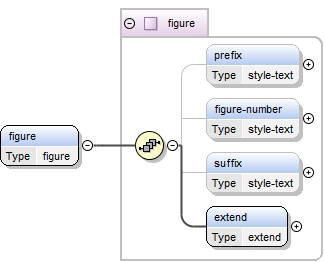

Diagram

Type

figure

Properties

content:	complex
maxOccurs:	unbounded

Model

prefix{0,1} , figure-number{0,1} , suffix{0,1} , extend

Children

extend, figure-number, prefix, suffix

Instance

<figure>
  <prefix color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</prefix>
  <figure-number color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</figure-number>
  <suffix color="" default-x="" default-y="" font-family="" font-size="" font-style="" font-weight="" relative-x="" relative-y="">{0,1}</suffix>
  <extend color="" font-family="" font-size="" font-style="" font-weight="">{1,1}</extend>
</figure>

Source

<xs:element name="figure" type="figure" maxOccurs="unbounded"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Complex Type figured-bass

Namespace

No namespace

Annotations

The figured-bass element represents figured bass notation. Figured bass elements take their position from the first regular note that follows. Figures are ordered from top to bottom. The value of parentheses is "no" if not present.

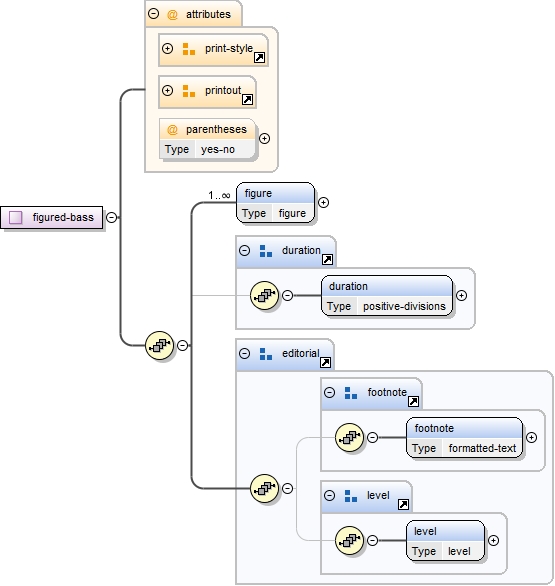

Diagram

Used by

Element

music-data/figured-bass

Model

figure+ , duration , footnote , level

Children

duration, figure, footnote, level

Attributes

QName	Type	Use
color	color	optional
default-x	tenths	optional
default-y	tenths	optional
font-family	comma-separated-text	optional
font-size	font-size	optional
font-style	font-style	optional
font-weight	font-weight	optional
parentheses	yes-no	optional
print-dot	yes-no	optional
print-lyric	yes-no	optional
print-object	yes-no	optional
print-spacing	yes-no	optional
relative-x	tenths	optional
relative-y	tenths	optional

Source

<xs:complexType name="figured-bass">
  <xs:annotation>
    <xs:documentation>The figured-bass element represents figured bass notation. Figured bass elements take their position from the first regular note that follows. Figures are ordered from top to bottom. The value of parentheses is "no" if not present.</xs:documentation>
  </xs:annotation>
  <xs:sequence>
    <xs:element name="figure" type="figure" maxOccurs="unbounded"/>
    <xs:group ref="duration" minOccurs="0"/>
    <xs:group ref="editorial"/>
  </xs:sequence>
  <xs:attributeGroup ref="print-style"/>
  <xs:attributeGroup ref="printout"/>
  <xs:attribute name="parentheses" type="yes-no"/>
</xs:complexType>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd

Attribute figured-bass/@parentheses

Namespace

No namespace

Type

yes-no

Properties

content:

simple

Facets

enumeration

yes, no

Used by

Complex Type

figured-bass

Source

<xs:attribute name="parentheses" type="yes-no"/>

Schema location

file:/C:/Users/mihai/Desktop/MusicXML-Schema/musicxml.xsd
