Documentation 1Password Connect

1Password Connect

v1.3.0

Information

REST API interface for 1Password Connect.

Contact

1Password Integrations
Send mail to 1Password Integrations
Website

Servers

Server Variables

Computed URL

Paths

Items

Tag description

Access and manage items inside 1Password Vaults

patch

/vaults/{vaultUuid}/items/{itemUuid}

Parameters

required

vaultUuid

The UUID of the Vault the item is in

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

required

itemUuid

The UUID of the Item to update

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

OK - Item updated. If no Patch operations were provided, Item is unmodified.

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

401

Invalid or missing token

application/json

Type

empty schema

Source

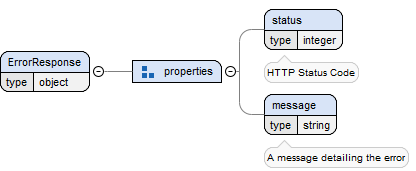

{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

RequestBody

application/json

Type

empty schema

Source

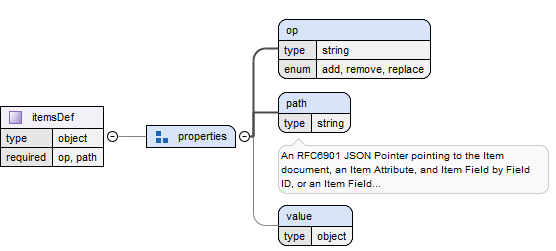

{"ref": "#/components/schemas/Patch"}

Security

0{"ConnectToken":[]}

get

/vaults/{vaultUuid}/items/{itemUuid}

Parameters

required

vaultUuid

The UUID of the Vault to fetch Item from

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

required

itemUuid

The UUID of the Item to fetch

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

delete

/vaults/{vaultUuid}/items/{itemUuid}

Parameters

required

itemUuid

The UUID of the Item to update

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

required

vaultUuid

The UUID of the Vault the item is in

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

204

Successfully deleted an item

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

put

/vaults/{vaultUuid}/items/{itemUuid}

Parameters

required

vaultUuid

The UUID of the Item's Vault

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

required

itemUuid

The UUID of the Item to update

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

400

Unable to create item due to invalid input

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

RequestBody

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

Security

0{"ConnectToken":[]}

post

/vaults/{vaultUuid}/items

Parameters

required

vaultUuid

The UUID of the Vault to create an Item in

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

400

Unable to create item due to invalid input

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

RequestBody

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/FullItem"}

Security

0{"ConnectToken":[]}

get

/vaults/{vaultUuid}/items

Parameters

optional

filter

Filter the Item collection based on Item name using SCIM eq filter

[ query ]

Type

string

Source


{
  "type": "string",
  "example": "title eq \"Some Item Name\""
}

required

vaultUuid

The UUID of the Vault to fetch Items from

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

application/json

Type

array

Constraints

Unique Items : false

Array Items

Items

#/items

Source


{
  "type": "array",
  "items": {"ref": "#/components/schemas/Item"}
}

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/Item"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Vault not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

Vaults

Tag description

Access 1Password Vaults

get

/vaults

Parameters

optional

filter

Filter the Vault collection based on Vault name using SCIM eq filter

[ query ]

Type

string

Source


{
  "type": "string",
  "example": "name eq \"Some Vault Name\""
}

Responses

200

application/json

Type

array

Constraints

Unique Items : false

Array Items

Items

#/items

Source


{
  "type": "array",
  "items": {"ref": "#/components/schemas/Vault"}
}

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/Vault"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

get

/vaults/{vaultUuid}

Parameters

required

vaultUuid

The UUID of the Vault to fetch Items from

[ path ]

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


{
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Responses

200

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/Vault"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Vault not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

Activity

Tag description

Access API Request Activity

get

/activity

Parameters

optional

limit

How many API Events should be retrieved in a single request.

[ query ]

Type

number

Constraints

Default : 50

Source


{
  "type": "integer",
  "default": 50,
  "example": 10
}

optional

offset

How far into the collection of API Events should the response start

[ query ]

Type

number

Constraints

Default : 0

Source


{
  "type": "integer",
  "default": 0,
  "example": 50
}

Responses

200

application/json

Type

array

Constraints

Unique Items : false

Array Items

Items

#/items

Source


{
  "type": "array",

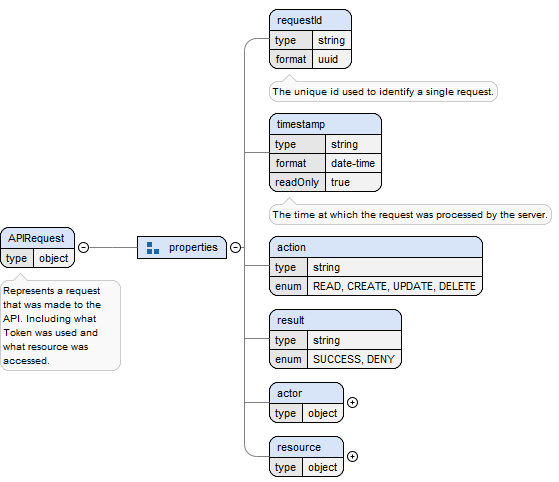

  "items": {"ref": "#/components/schemas/APIRequest"}
}

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/APIRequest"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

Metrics

get

/metrics

Responses

200

Successfully returned Prometheus metrics

text/plain

Type

string

Source


{
  "type": "string",
  "example": "# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.\n# TYPE go_gc_duration_seconds summary\ngo_gc_duration_seconds{quantile=\"0\"} 2.9153e-05\ngo_gc_duration_seconds{quantile=\"0.25\"} 6.2832e-05\ngo_gc_duration_seconds{quantile=\"0.5\"} 9.7187e-05\ngo_gc_duration_seconds{quantile=\"0.75\"} 0.000112967\ngo_gc_duration_seconds{quantile=\"1\"} 0.000215819\ngo_gc_duration_seconds_sum 0.001376862\ngo_gc_duration_seconds_count 14\n"
}

Servers

0http://localhost:8080

Health

get

/health

Responses

200

application/json

Type

object

Properties

Name	Occurrence
name version dependencies	required required optional

Source


{
  "type": "object",
  "required": [
    "name",
    "version"
  ],
  "properties": {
    "name": {"type": "string"},
    "version": {
      "type": "string",
      "description": "The Connect server's version"
    },
    "dependencies": {
      "type": "array",
      "items": {}
    }
  }
}

Type

string

Source


 "name": {"type": "string"}

Annotations

Description  The Connect server's version

Type

string

Source


 "version": {
  "type": "string",
  "description": "The Connect server's version"
}

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/dependencies/items

Source


 "dependencies": {
  "type": "array",

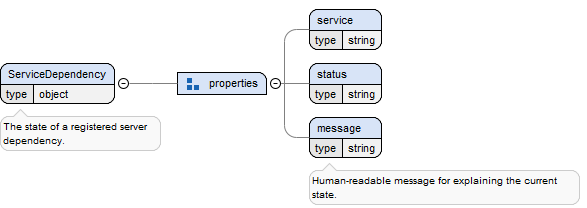

  "items": {"ref": "#/components/schemas/ServiceDependency"}
}

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/ServiceDependency"}

Servers

0http://localhost:8080

get

/heartbeat

Responses

200

text/plain

Type

string

Source


{
  "type": "string",
  "example": "."
}

Servers

0http://localhost:8080

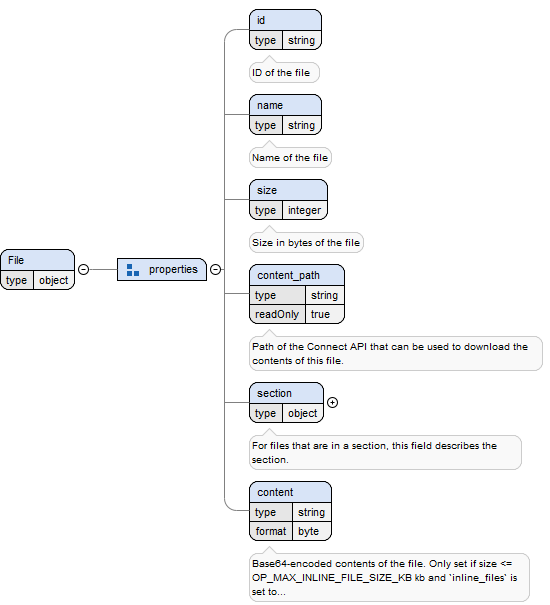

Files

get

/vaults/{vaultUuid}/items/{itemUuid}/files

Parameters

required

vaultUuid

The UUID of the Vault to fetch Items from

[ path ]

Type

string

Source


{"type": "string"}

optional

inline_files

Tells server to return the base64-encoded file contents in the response.

[ query ]

Type

boolean

Source


{
  "example": true,
  "type": "boolean"
}

required

itemUuid

The UUID of the Item to fetch files from

[ path ]

Type

string

Source


{"type": "string"}

Responses

200

application/json

Type

array

Constraints

Unique Items : false

Array Items

Items

#/items

Source


{
  "type": "array",
  "items": {"ref": "#/components/schemas/File"}
}

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/File"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

413

File content too large to display

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

Item not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

get

/vaults/{vaultUuid}/items/{itemUuid}/files/{fileUuid}

Parameters

optional

inline_files

Tells server to return the base64-encoded file contents in the response.

[ query ]

Type

boolean

Source


{
  "example": true,
  "type": "boolean"
}

required

vaultUuid

The UUID of the Vault to fetch Item from

[ path ]

Type

string

Source


{"type": "string"}

required

itemUuid

The UUID of the Item to fetch File from

[ path ]

Type

string

Source


{"type": "string"}

required

fileUuid

The UUID of the File to fetch

[ path ]

Type

string

Source


{"type": "string"}

Responses

200

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/File"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

413

File content too large to display

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

403

Unauthorized access

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

File not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

get

/vaults/{vaultUuid}/items/{itemUuid}/files/{fileUuid}/content

Parameters

required
required
required

Responses

200

Success

application/octet-stream

Type

string

Source


{"type": "string"}

401

Invalid or missing token

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

404

File not found

application/json

Type

empty schema

Source


{"ref": "#/components/schemas/ErrorResponse"}

Security

0{"ConnectToken":[]}

Components

APIRequest

Annotations

Description  Represents a request that was made to the API. Including what Token was used and what resource was accessed.

Diagram

Type

object

Properties

Name	Occurrence
requestId timestamp action result actor resource	optional optional optional optional optional optional

Source


 "APIRequest": {
  "type": "object",
  "description": "Represents a request that was made to the API. Including what Token was used and what resource was accessed.",
  "properties": {
    "requestId": {
      "type": "string",
      "description": "The unique id used to identify a single request."
    },
    "timestamp": {
      "type": "string",
      "format": "date-time",
      "description": "The time at which the request was processed by the server.",
      "readOnly": true
    },
    "action": {
      "type": "string",
      "enum": [
        "READ",
        "DELETE",
        "CREATE",
        "UPDATE"
      ]
    },
    "result": {
      "type": "string",
      "enum": [
        "SUCCESS",
        "DENY"
      ]
    },
    "actor": {
      "type": "object",
      "properties": {}
    },
    "resource": {
      "type": "object",
      "properties": {}
    }
  }
}

Annotations

Description  The unique id used to identify a single request.

Diagram

Type

string

Source


 "requestId": {
  "type": "string",
  "description": "The unique id used to identify a single request."
}

Annotations

Description  The time at which the request was processed by the server.

Diagram

Type

string

Constraints

Format : date-time

Source


 "timestamp": {
  "type": "string",
  "format": "date-time",
  "description": "The time at which the request was processed by the server.",
  "readOnly": true
}

Diagram

Type

string

Enumeration

Values

READ

DELETE

CREATE

UPDATE

Source


 "action": {
  "type": "string",
  "enum": [
    "READ",
    "DELETE",
    "CREATE",
    "UPDATE"
  ]
}

Diagram

Type

string

Enumeration

Values

SUCCESS

DENY

Source


 "result": {
  "type": "string",
  "enum": [
    "SUCCESS",
    "DENY"
  ]
}

Diagram

Type

object

Properties

Name	Occurrence
id account jti userAgent requestIp	optional optional optional optional optional

Source


 "actor": {
  "type": "object",
  "properties": {
    "id": {"type": "string"},
    "account": {"type": "string"},
    "jti": {"type": "string"},
    "userAgent": {"type": "string"},
    "requestIp": {"type": "string"}
  }
}

Diagram

Type

string

Source


 "id": {"type": "string"}

Diagram

Type

string

Source


 "account": {"type": "string"}

Diagram

Type

string

Source


 "jti": {"type": "string"}

Diagram

Type

string

Source


 "userAgent": {"type": "string"}

Diagram

Type

string

Source


 "requestIp": {"type": "string"}

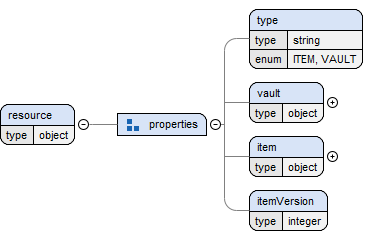

Diagram

Type

object

Properties

Name	Occurrence
type vault item itemVersion	optional optional optional optional

Source


 "resource": {
  "type": "object",
  "properties": {
    "type": {
      "type": "string",
      "enum": [
        "ITEM",
        "VAULT"
      ]
    },
    "vault": {
      "type": "object",
      "properties": {}
    },
    "item": {
      "type": "object",
      "properties": {}
    },
    "itemVersion": {"type": "integer"}
  }
}

Diagram

Type

string

Enumeration

Values

ITEM

VAULT

Source


 "type": {
  "type": "string",
  "enum": [
    "ITEM",
    "VAULT"
  ]
}

Diagram

Type

object

Properties

Name	Occurrence
id	optional

Source


 "vault": {
  "type": "object",
  "properties": {
    "id": {
      "type": "string",
      "pattern": "^[\\da-z]{26}"
    }
  }
}

Diagram

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


 "id": {
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Diagram

Type

object

Properties

Name	Occurrence
id	optional

Source


 "item": {
  "type": "object",
  "properties": {
    "id": {
      "type": "string",
      "pattern": "^[\\da-z]{26}"
    }
  }
}

Diagram

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


 "id": {
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Diagram

Type

number

Source


 "itemVersion": {"type": "integer"}

Item

Diagram

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


 "id": {
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Diagram

Type

string

Source


 "title": {"type": "string"}

Diagram

Type

object

Properties

Name	Occurrence
id	required

Source


 "vault": {
  "type": "object",
  "required": ["id"],
  "properties": {
    "id": {
      "type": "string",
      "pattern": "^[\\da-z]{26}"
    }
  }
}

Diagram

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


 "id": {
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Diagram

Type

string

Enumeration

Values

SOCIAL_SECURITY_NUMBER

SECURE_NOTE

OUTDOOR_LICENSE

WIRELESS_ROUTER

API_CREDENTIAL

DRIVER_LICENSE

EMAIL_ACCOUNT

CREDIT_CARD

IDENTITY

MEMBERSHIP

SOFTWARE_LICENSE

BANK_ACCOUNT

PASSWORD

DATABASE

SERVER

CUSTOM

DOCUMENT

REWARD_PROGRAM

PASSPORT

Source


 "category": {
  "type": "string",
  "enum": [
    "SOCIAL_SECURITY_NUMBER",
    "SECURE_NOTE",
    "OUTDOOR_LICENSE",
    "WIRELESS_ROUTER",
    "API_CREDENTIAL",
    "DRIVER_LICENSE",
    "EMAIL_ACCOUNT",
    "CREDIT_CARD",
    "IDENTITY",
    "MEMBERSHIP",
    "SOFTWARE_LICENSE",
    "BANK_ACCOUNT",
    "PASSWORD",
    "DATABASE",
    "SERVER",
    "CUSTOM",
    "DOCUMENT",
    "LOGIN",
    "REWARD_PROGRAM",
    "PASSPORT"
  ]
}

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/urls/items

Source


 "urls": {
  "type": "array",
  "example": [
    {
      "primary": true,
      "href": "https://example.com"
    },
    {"href": "https://example.org"}
  ],
  "items": {
    "type": "object",
    "required": ["href"],
    "properties": {
      "primary": {"type": "boolean"},
      "href": {"type": "string"}
    }
  }
}

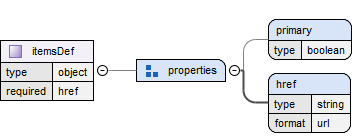

Diagram

Type

object

Properties

Name	Occurrence
primary href	optional required

Source


 "items": {
  "type": "object",
  "required": ["href"],
  "properties": {
    "primary": {"type": "boolean"},
    "href": {"type": "string"}
  }
}

Diagram

Type

boolean

Source


 "primary": {"type": "boolean"}

Diagram

Type

string

Source


 "href": {"type": "string"}

Diagram

Type

boolean

Default value :

false

Source


 "favorite": {
  "default": false,
  "type": "boolean"
}

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/tags/items

Source


 "tags": {
  "type": "array",
  "items": {"type": "string"}
}

Diagram

Type

string

Source


 "items": {"type": "string"}

Diagram

Type

number

Source


 "version": {"type": "integer"}

Diagram

Type

string

Enumeration

Values

ARCHIVED

DELETED

Source


 "state": {
  "readOnly": true,
  "type": "string",
  "enum": [
    "ARCHIVED",
    "DELETED"
  ]
}

Diagram

Type

string

Constraints

Format : date-time

Source


 "createdAt": {
  "type": "string",
  "format": "date-time",
  "readOnly": true
}

Diagram

Type

string

Constraints

Format : date-time

Source


 "updatedAt": {
  "type": "string",
  "format": "date-time",
  "readOnly": true
}

Diagram

Type

string

Source


 "lastEditedBy": {
  "type": "string",
  "readOnly": true
}

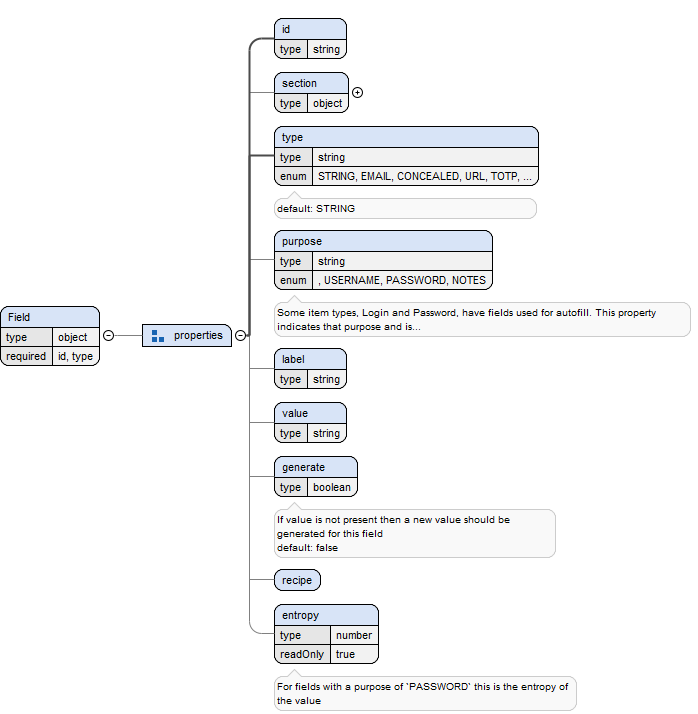

Field

Diagram

Type

object

Properties

Name	Occurrence
id section type purpose label value generate recipe entropy	required optional required optional optional optional optional optional optional

Source


 "Field": {
  "type": "object",
  "required": [
    "id",
    "type"
  ],
  "properties": {
    "id": {"type": "string"},
    "section": {
      "type": "object",
      "properties": {}
    },
    "type": {
      "default": "STRING",
      "type": "string",
      "enum": [
        "TOTP",
        "DATE",
        "MONTH_YEAR",
        "CONCEALED",
        "STRING",
        "MENU",
        "EMAIL",
        "URL"
      ]
    },

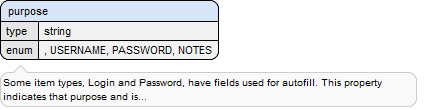

    "purpose": {
      "description": "Some item types, Login and Password, have fields used for autofill. This property indicates that purpose and is required for some item types.",
      "type": "string",
      "enum": [
        "",
        "NOTES",
        "PASSWORD",
        "USERNAME"
      ]
    },
    "label": {"type": "string"},
    "value": {"type": "string"},
    "generate": {
      "description": "If value is not present then a new value should be generated for this field",
      "default": false,
      "type": "boolean"
    },

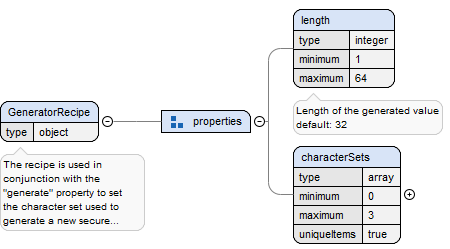

    "recipe": {"ref": "#/components/schemas/GeneratorRecipe"},

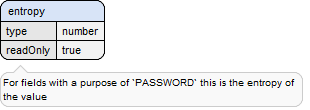

    "entropy": {
      "type": "number",
      "description": "For fields with a purpose of `PASSWORD` this is the entropy of the value",
      "readOnly": true
    }
  }
}

Diagram

Type

string

Source


 "id": {"type": "string"}

Diagram

Type

object

Properties

Name	Occurrence
id	optional

Source


 "section": {
  "type": "object",
  "properties": {
    "id": {"type": "string"}
  }
}

Diagram

Type

string

Source


 "id": {"type": "string"}

Diagram

Type

string

Constraints

Default : STRING

Enumeration

Values

TOTP

DATE

MONTH_YEAR

CONCEALED

STRING

URL

Source


 "type": {
  "default": "STRING",
  "type": "string",
  "enum": [
    "TOTP",
    "DATE",
    "MONTH_YEAR",
    "CONCEALED",
    "STRING",
    "MENU",
    "EMAIL",
    "URL"
  ]
}

Annotations

Description  Some item types, Login and Password, have fields used for autofill. This property indicates that purpose and is required for some item types.

Diagram

Type

string

Enumeration

Values

NOTES

PASSWORD

USERNAME

Source


 "purpose": {
  "description": "Some item types, Login and Password, have fields used for autofill. This property indicates that purpose and is required for some item types.",
  "type": "string",
  "enum": [
    "",
    "NOTES",
    "PASSWORD",
    "USERNAME"
  ]
}

Diagram

Type

string

Source


 "label": {"type": "string"}

Diagram

Type

string

Source


 "value": {"type": "string"}

Annotations

Description  If value is not present then a new value should be generated for this field

Diagram

Type

boolean

Default value :

false

Source


 "generate": {
  "description": "If value is not present then a new value should be generated for this field",
  "default": false,
  "type": "boolean"
}

Diagram

Type

empty schema

Source


 "recipe": {"ref": "#/components/schemas/GeneratorRecipe"}

Annotations

Description  For fields with a purpose of `PASSWORD` this is the entropy of the value

Diagram

Type

number

Source


 "entropy": {
  "type": "number",
  "description": "For fields with a purpose of `PASSWORD` this is the entropy of the value",
  "readOnly": true
}

FullItem

Diagram

Type

object

All of

Choices

FullItem : Schema (0)

FullItem : Schema (1)

Source


 "FullItem": {
  "allOf": [
    {"ref": "#/components/schemas/Item"},
    {
      "type": "object",
      "properties": {
        "sections": {
          "type": "array",
          "items": {
            "type": "object",
            "properties": {
              "id": {"type": "string"},
              "label": {"type": "string"}
            }
          }
        },
        "fields": {
          "type": "array",
          "items": {"ref": "#/components/schemas/Field"}
        },
        "files": {
          "type": "array",
          "items": {"ref": "#/components/schemas/File"}
        }
      }
    }
  ]
}

Diagram

Type

empty schema

Source


{"ref": "#/components/schemas/Item"}

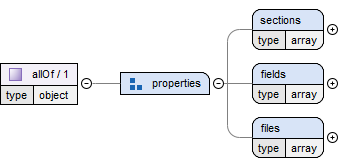

Diagram

Type

object

Properties

Name	Occurrence
sections fields files	optional optional optional

Source


{
  "type": "object",
  "properties": {
    "sections": {
      "type": "array",
      "items": {}
    },
    "fields": {
      "type": "array",
      "items": {}
    },
    "files": {
      "type": "array",
      "items": {}
    }
  }
}

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/FullItem/allOf/1/properties/sections/items

Source


 "sections": {
  "type": "array",
  "items": {
    "type": "object",
    "properties": {
      "id": {"type": "string"},
      "label": {"type": "string"}
    }
  }
}

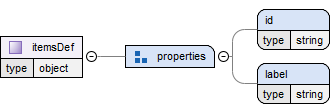

Diagram

Type

object

Properties

Name	Occurrence
id label	optional optional

Source


 "items": {
  "type": "object",
  "properties": {
    "id": {"type": "string"},
    "label": {"type": "string"}
  }
}

Diagram

Type

string

Source


 "id": {"type": "string"}

Diagram

Type

string

Source


 "label": {"type": "string"}

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/FullItem/allOf/1/properties/fields/items

Source


 "fields": {
  "type": "array",
  "items": {"ref": "#/components/schemas/Field"}
}

Diagram

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/Field"}

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/FullItem/allOf/1/properties/files/items

Source


 "files": {
  "type": "array",
  "items": {"ref": "#/components/schemas/File"}
}

Diagram

Type

empty schema

Source


 "items": {"ref": "#/components/schemas/File"}

Vault

Diagram

Type

object

Properties

Name	Occurrence
id name description attributeVersion contentVersion items type createdAt updatedAt	optional optional optional optional optional optional optional optional optional

Source


 "Vault": {
  "type": "object",
  "properties": {
    "id": {
      "type": "string",
      "pattern": "^[\\da-z]{26}"
    },
    "name": {"type": "string"},
    "description": {"type": "string"},
    "attributeVersion": {
      "type": "integer",
      "description": "The vault version"
    },
    "contentVersion": {
      "type": "integer",
      "description": "The version of the vault contents"
    },
    "items": {
      "type": "integer",
      "description": "Number of active items in the vault"
    },
    "type": {
      "type": "string",
      "enum": [
        "PERSONAL",
        "TRANSFER",
        "USER_CREATED",
        "EVERYONE"
      ]
    },
    "createdAt": {
      "type": "string",
      "format": "date-time",
      "readOnly": true
    },
    "updatedAt": {
      "type": "string",
      "format": "date-time",
      "readOnly": true
    }
  }
}

Diagram

Type

string

Constraints

Pattern : ^[\da-z]{26}

Source


 "id": {
  "type": "string",
  "pattern": "^[\\da-z]{26}"
}

Diagram

Type

string

Source


 "name": {"type": "string"}

Diagram

Type

string

Source


 "description": {"type": "string"}

Annotations

Description  The vault version

Diagram

Type

number

Source


 "attributeVersion": {
  "type": "integer",
  "description": "The vault version"
}

Annotations

Description  The version of the vault contents

Diagram

Type

number

Source


 "contentVersion": {
  "type": "integer",
  "description": "The version of the vault contents"
}

Annotations

Description  Number of active items in the vault

Diagram

Type

number

Source


 "items": {
  "type": "integer",
  "description": "Number of active items in the vault"
}

Diagram

Type

string

Enumeration

Values

PERSONAL

TRANSFER

USER_CREATED

EVERYONE

Source


 "type": {
  "type": "string",
  "enum": [
    "PERSONAL",
    "TRANSFER",
    "USER_CREATED",
    "EVERYONE"
  ]
}

Diagram

Type

string

Constraints

Format : date-time

Source


 "createdAt": {
  "type": "string",
  "format": "date-time",
  "readOnly": true
}

Diagram

Type

string

Constraints

Format : date-time

Source


 "updatedAt": {
  "type": "string",
  "format": "date-time",
  "readOnly": true
}

ServiceDependency

Annotations

Description  The state of a registered server dependency.

Diagram

Type

object

Properties

Name	Occurrence
service status message	optional optional optional

Source


 "ServiceDependency": {
  "type": "object",
  "description": "The state of a registered server dependency.",
  "properties": {
    "service": {"type": "string"},
    "status": {"type": "string"},
    "message": {
      "type": "string",
      "description": "Human-readable message for explaining the current state."
    }
  }
}

Diagram

Type

string

Source


 "service": {"type": "string"}

Diagram

Type

string

Source


 "status": {"type": "string"}

Annotations

Description  Human-readable message for explaining the current state.

Diagram

Type

string

Source


 "message": {
  "type": "string",
  "description": "Human-readable message for explaining the current state."
}

File

Diagram

Type

object

Properties

Name	Occurrence
id name size content_path section content	optional optional optional optional optional optional

Source


 "File": {
  "type": "object",
  "example": {
    "id": "6r65pjq33banznomn7q22sj44e",
    "name": "foo.txt",
    "size": 35,
    "content_path": "v1/vaults/ionaiwtdvgclrixbt6ztpqcxnq/items/p7eflcy7f5mk7vg6zrzf5rjjyu/files/6r65pjq33banznomn7q22sj44e/content",
    "content": "VGhlIGZ1dHVyZSBiZWxvbmdzIHRvIHRoZSBjdXJpb3VzLgo="
  },
  "properties": {
    "id": {
      "type": "string",
      "description": "ID of the file"
    },
    "name": {
      "type": "string",
      "description": "Name of the file"
    },
    "size": {
      "type": "integer",
      "description": "Size in bytes of the file"
    },
    "content_path": {
      "type": "string",
      "description": "Path of the Connect API that can be used to download the contents of this file.",
      "readOnly": true
    },
    "section": {
      "type": "object",
      "description": "For files that are in a section, this field describes the section.",
      "properties": {}
    },
    "content": {
      "type": "string",
      "description": "Base64-encoded contents of the file. Only set if size <= OP_MAX_INLINE_FILE_SIZE_KB kb and `inline_files` is set to `true`."
    }
  }
}

Annotations

Description  ID of the file

Diagram

Type

string

Source


 "id": {
  "type": "string",
  "description": "ID of the file"
}

Annotations

Description  Name of the file

Diagram

Type

string

Source


 "name": {
  "type": "string",
  "description": "Name of the file"
}

Annotations

Description  Size in bytes of the file

Diagram

Type

number

Source


 "size": {
  "type": "integer",
  "description": "Size in bytes of the file"
}

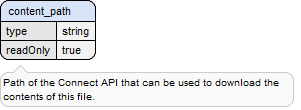

Annotations

Description  Path of the Connect API that can be used to download the contents of this file.

Diagram

Type

string

Source


 "content_path": {
  "type": "string",
  "description": "Path of the Connect API that can be used to download the contents of this file.",
  "readOnly": true
}

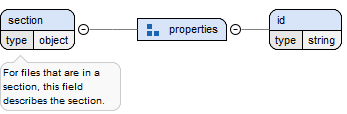

Annotations

Description  For files that are in a section, this field describes the section.

Diagram

Type

object

Properties

Name	Occurrence
id	optional

Source


 "section": {
  "type": "object",
  "description": "For files that are in a section, this field describes the section.",
  "properties": {
    "id": {"type": "string"}
  }
}

Diagram

Type

string

Source


 "id": {"type": "string"}

Annotations

Description  Base64-encoded contents of the file. Only set if size <= OP_MAX_INLINE_FILE_SIZE_KB kb and `inline_files` is set to `true`.

Diagram

Type

string

Source


 "content": {
  "type": "string",
  "description": "Base64-encoded contents of the file. Only set if size <= OP_MAX_INLINE_FILE_SIZE_KB kb and `inline_files` is set to `true`."
}

Patch

Diagram

Type

array

Constraints

Unique Items : false

Array Items

Items

#/properties/Patch/items

Source


 "Patch": {
  "type": "array",
  "items": {
    "type": "object",
    "required": [
      "op",
      "path"
    ],
    "properties": {
      "op": {
        "type": "string",
        "enum": [
          "add",
          "replace",
          "remove"
        ]
      },
      "path": {
        "type": "string",
        "description": "An RFC6901 JSON Pointer pointing to the Item document, an Item Attribute, and Item Field by Field ID, or an Item Field Attribute",
        "example": "/fields/06gnn2b95example10q91512p5/label"
      },
      "value": {"type": "object"}
    }
  }
}

Diagram

Type

object

Properties

Name	Occurrence
op path value	required required optional

Source


 "items": {
  "type": "object",
  "required": [
    "op",
    "path"
  ],
  "properties": {
    "op": {
      "type": "string",
      "enum": [
        "add",
        "replace",
        "remove"
      ]
    },
    "path": {
      "type": "string",
      "description": "An RFC6901 JSON Pointer pointing to the Item document, an Item Attribute, and Item Field by Field ID, or an Item Field Attribute",
      "example": "/fields/06gnn2b95example10q91512p5/label"
    },
    "value": {"type": "object"}
  }
}

Diagram

Type

string

Enumeration

Values

add

replace

remove

Source


 "op": {
  "type": "string",
  "enum": [
    "add",
    "replace",
    "remove"
  ]
}

Annotations

Description  An RFC6901 JSON Pointer pointing to the Item document, an Item Attribute, and Item Field by Field ID, or an Item Field Attribute

Diagram

Type

string

Source


 "path": {
  "type": "string",
  "description": "An RFC6901 JSON Pointer pointing to the Item document, an Item Attribute, and Item Field by Field ID, or an Item Field Attribute",
  "example": "/fields/06gnn2b95example10q91512p5/label"
}

Diagram

Type

object

Source


 "value": {"type": "object"}

GeneratorRecipe

diagramImages/schema_properties_vault_properties_id.png

Annotations

Description  The recipe is used in conjunction with the "generate" property to set the character set used to generate a new secure value

Diagram

Type

object

Properties

Name	Occurrence
length characterSets	optional optional

Source


 "GeneratorRecipe": {
  "type": "object",
  "description": "The recipe is used in conjunction with the \"generate\" property to set the character set used to generate a new secure value",
  "properties": {
    "length": {
      "type": "integer",
      "minimum": 1,
      "maximum": 64,
      "description": "Length of the generated value",
      "default": 32
    },
    "characterSets": {
      "type": "array",
      "uniqueItems": true,
      "minimum": 0,
      "maximum": 3,
      "items": {}
    }
  }
}

Annotations

Description  Length of the generated value

Diagram

Type

number

Constraints

Minimum : 1

Maximum : 64

Default : 32

Source


 "length": {
  "type": "integer",
  "minimum": 1,
  "maximum": 64,
  "description": "Length of the generated value",
  "default": 32
}

Diagram

Type

object

All of

Choices

characterSets : Schema (#/properties/GeneratorRecipe/properties/characterSets/0)

characterSets : Schema (#/properties/GeneratorRecipe/properties/characterSets/1)

Source


 "characterSets": {
  "type": "array",
  "uniqueItems": true,
  "items": {
    "type": "string",
    "enum": [
      "LETTERS",
      "DIGITS",
      "SYMBOLS"
    ]
  },
  "minimum": 0,
  "maximum": 3
}

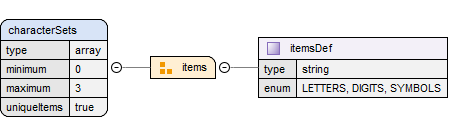

Diagram

Type

array

Constraints

Unique Items : true

Array Items

Items

#/properties/GeneratorRecipe/properties/characterSets/items

Source


 "characterSets/0": {
  "type": "array",
  "uniqueItems": true,
  "items": {
    "type": "string",
    "enum": [
      "LETTERS",
      "DIGITS",
      "SYMBOLS"
    ]
  }
}

Diagram

Type

string

Enumeration

Values

LETTERS

DIGITS

SYMBOLS

Source


 "items": {
  "type": "string",
  "enum": [
    "LETTERS",
    "DIGITS",
    "SYMBOLS"
  ]
}

Diagram

Type

number

Constraints

Minimum : 0

Maximum : 3

Source


 "characterSets/1": {
  "minimum": 0,
  "maximum": 3
}

ErrorResponse

Diagram

Type

object

Properties

Name	Occurrence
status message	optional optional

Source


 "ErrorResponse": {
  "type": "object",
  "properties": {
    "status": {
      "type": "integer",
      "description": "HTTP Status Code"
    },
    "message": {
      "type": "string",
      "description": "A message detailing the error"
    }
  }
}

Annotations

Description  HTTP Status Code

Diagram

Type

number

Source


 "status": {
  "type": "integer",
  "description": "HTTP Status Code"
}

Annotations

Description  A message detailing the error

Diagram

Type

string

Source


 "message": {
  "type": "string",
  "description": "A message detailing the error"
}

SecuritySchemes

ConnectToken

type: http

scheme: bearer
