Author Action Dialog Box

To edit an existing document type action or create a new one, open the Preferences dialog box (Options > Preferences), go to Document Type Association, use the New, Edit, Duplicate, or Extend button, click on the Author tab, and then the Actions subtab. At the bottom of this subtab, click New to create a new action, or Edit to modify an existing one.

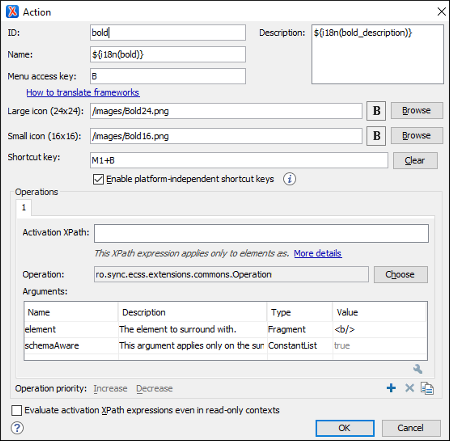

Figure 1. Action Dialog Box
The following options are available in the Action dialog box:
ID
Specifies a unique action identifier.
Name
Specifies the name of the action. This name is displayed as a tooltip or as a menu item.
Tip: You can use the ${i18n('key')} editor variable to allow for multiple translations of the name.
Menu access key
In Windows, you can access menus by holding down Alt and pressing the keyboard key that corresponds to the letter that is underlined in the name of the menu. Then, while still holding down Alt, you can select submenus and menu action the same way by pressing subsequent corresponding keys. You can use this option to specify the letter in the name of the action that can be used to access the action.
Description
A description of the action. This description is displayed as a tooltip when hovering over the action.
Tip: You can use the ${i18n('key')} editor variable to allow for multiple translations of the description.
How to translate frameworks link
Use this link to see more information about Localizing Frameworks.
Large icon
Allows you to select an image for the icon that Oxygen XML Editor uses for the toolbar action.
Tip: A good practice is to store the image files inside the framework directory and use the ${frameworks} editor variable to make the image relative to the framework location. If the images are bundled in a jar archive (for instance, along with some Java operations implementation), it is convenient to reference the images by their relative path location in the class-path.
Small icon
Allows you to select an image for the icon that Oxygen XML Editor uses for the contextual menu action.
Note: If you are using a Retina or HiDPI display, Oxygen XML Editor automatically searches for higher resolution icons in the path specified in both the Large icon and Small icon options. For more information, see Using Retina/HiDPI Icons for the Actions from a Framework.
Shortcut key

This field allows you to configure a shortcut key for the action that you are editing. The + character separates the keys.

Enable platform-independent shortcut keys
If this checkbox is selected, the shortcut that you specify in this field is platform-independent and the following modifiers are used:
  • M1 represents the Command key on macOS, and the Ctrl key on other platforms.
  • M2 represents the Shift key.
  • M3 represents the Option key on macOS, and the Alt key on other platforms.
  • M4 represents the Ctrl key on macOS, and is undefined on other platforms.
Operations section

In this section of the Action dialog box, you configure the functionality of the action that you are editing. An action has one or more operation modes. The evaluation of an XPath expression activates an operation mode. The first selected operation mode is activated when you trigger the action. The scope of the XPath expression must consist only of element nodes and attribute nodes of the edited document. Otherwise, the XPath expression does not return a match and does not fire the action. For more details see: Controlling Which Author Operations Gets Executed Through XPath Expressions.

The following options are available in this section:
Activation XPath
An XPath 2.0 expression that applies to elements and attributes. For more details see: Controlling Which Author Operations Gets Executed Through XPath Expressions.
Operation
Specifies the invoked operation that can be a default operation or a custom operation.
Arguments
Specifies the arguments of the invoked operation. The Edit at the bottom of the table allows you to edit the arguments of the operation.
Operation priority
Increases or decreases the priority of an operation. The operations are invoked in the order of their priority. If multiple XPath expressions are true, the operation with the highest priority is invoked.
  • Add - Adds an operation.
  • Remove - Removes an operation.
  • Duplicate - Duplicates an operation.
Evaluate activation XPath expressions even in read-only contexts
If this checkbox is selected, the action can be invoked even when the cursor is placed in a read-only location.
