The intelligent Content Completion Assistant available in Oxygen XML Editor enables rapid, in-line
identification and insertion of structured language elements, attributes and, in some cases,
their parameter options.
Content Completion Assistant
The functioning of the Content Completion Assistant feature is schema-driven (XML Schema,
DTD, and RELAX NG). When Oxygen XML Editor
detects a schema, it logs its URL in the Information view.
The Content Completion Assistant is enabled by default, but you can disable it from . It is activated:
- automatically, after a configurable delay from the last key press of the <
character. You can adjust the delay from
the Content Completion preferences page;
- on demand, by pressing CTRL+Space on a partial element or attribute name.
the Content Completion list contains only one valid proposal, when you press the
CTRL+Space shortcut key, the proposal is automatically inserted.
Note: You can also start the Content Completion Assistant from .

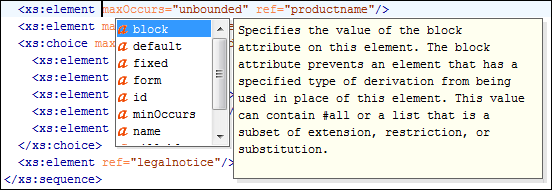

When active, it displays a list of context-sensitive proposals valid at the current caret
position. Elements are highlighted in the list using the Up and Down cursor
keys on your keyboard. For each selected item in the list, the Content Completion Assistant
displays a documentation window. You can customize the size of the documentation window by
dragging its top, right, and bottom borders.
To insert the selected content:
- press Enter or Tab on your keyboard to insert both the start and end
- press CTRL + Enter on your keyboard. The application inserts both the start and
end tags and positions the cursor between the tags, so you can start typing content.
Note: When the DTD, XML Schema or RELAX NG schema specifies required child elements for the
newly added element, they are inserted automatically only if the Add Element Content
option (found in options page) is enabled. The Content Completion assistant can also add
optional content and first choice particle, as specified in the DTD or XML Schema or RELAX NG
schema. To activate this feature, select the Add optional content and
Add first Choice particle check boxes in the options page.
After inserting an element, the cursor is positioned:
- before the > character of the start tag, if the element allows attributes, in order to
enable rapid insertion of any of the attributes supported by the element. Pressing the space
bar displays the Content Completion list once again. This time it contains the list of
allowed attribute names. If the attribute supports a fixed set of parameters, the assistant
list displays the list of valid parameters. If the parameter setting is user-defined and
therefore variable, the assistant is closed to enable manual insertion. The values of the
attributes can be learned from the same elements in the current document.
- after the > character of the start tag if the element has no attributes.
The Content Completion assistant is displayed:
- anywhere within a tag name or at the beginning of a tag name in an XML document, XML
Schema, DTD,or Relax NG (full or compact syntax) schema;
- anywhere within an attribute name or at the beginning of an attribute name in any XML
document with an associated schema;
- within attribute values or at the beginning of attribute values in XML documents where
lists of possible values have been defined for that element in the schema associated with
The items that populate the Content Completion Assistant depend on the element structure
specified in the DTD, XML Schema, Relax NG (full or compact syntax) schema, or NVDL schema
associated with the edited document.
Note: The Content Completion Assistant is able to offer
elements defined both by XML Schemas version 1.0 and 1.1.
The number and type of elements displayed by the Content Completion Assistant is dependent on
the cursor's current position in the structured document. The child elements displayed within
a given element are defined by the structure of the specified DTD, XML Schema, Relax NG (full
or compact syntax) schema, or NVDL schema.
A schema may declare certain attributes as ID or IDREF/IDREFS. When
the document is validated, Oxygen XML Editor checks
the uniqueness and correctness of the ID attributes. It also collects the attribute values
declared in the document to prepare the Content Completion Assistant's list of proposals. This
is available for documents that use DTD, XML Schema, and Relax NG schema.
Also, values of all the xml:id attributes are handled as ID attributes. They are
collected and displayed by the Content Completion Assistant as possible values for
anyURI attributes defined in the schema of the edited document. This works only for
XML Schema and Relax NG schemas.
For documents that use an XML Schema or Relax NG schema, the content assistant offers
proposals for attributes and elements values that have as type an enumeration of tokens. Also,
if a default value or a fixed value is defined in the XML Schema used in validation for an
attribute or element, then that value is offered in the Content Completion Assistant
